Genel Bilgiler
SGM-4200 provides communication between control panels and alarm monitoring centers through the GPRS channel of the GSM network instead of traditional fixed-phone lines. Communicator allows you to connect alarm panels to alarm monitoring centers, in places where no fixed-phone line is available. Also can be used as an effective back-up, SGM-4200 generates a much more economical and stable communication platform.
An economical alternative to traditional phone line communication, amount of data used (Monthly average 10Mb) is extremely low.
In addition, due to interruption of cable-enabled phone line, loss of communication with the alarm monitoring center is not an issue.
FUNCTIONAL SPECIFICATIONS
-
GPRS - TCP/IP communication
-
Communicates with the alarm panel via Contact ID protocol
-
Communicates with the alarm monitoring center via SIA-IP protocol
-
All messages are reported
-
Incoming SMS messages can be forwarded (Image-1)
-
User manual and configuration software is available in the built-in USB memory
-
All settings can be done via computer with free configuration software. (Image-2)
-
Basic settings can be done via SMS (Image-3)
-
The ed messages sent from the panel can be forwarded via SMS to the specified (up to 20) users. (Image-1)
-
If alarm monitoring center is unreachable for the de?ned time period, users will be informed by SMS
-
If alarm panel doesn’t send a message for the de?ned time period, ed users are noti?ed by SMS
-
8 users can be determined
-

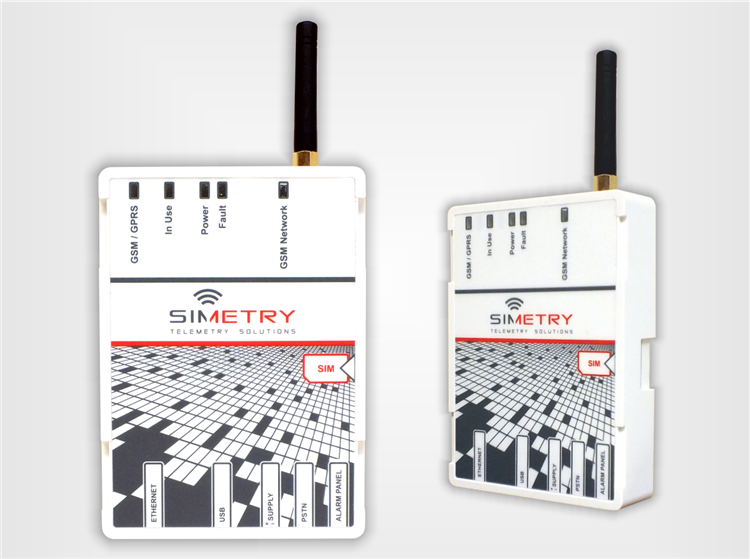

Network status, Error status, GSM communication status, GPRS communication status can be observed with the LEDs on the box

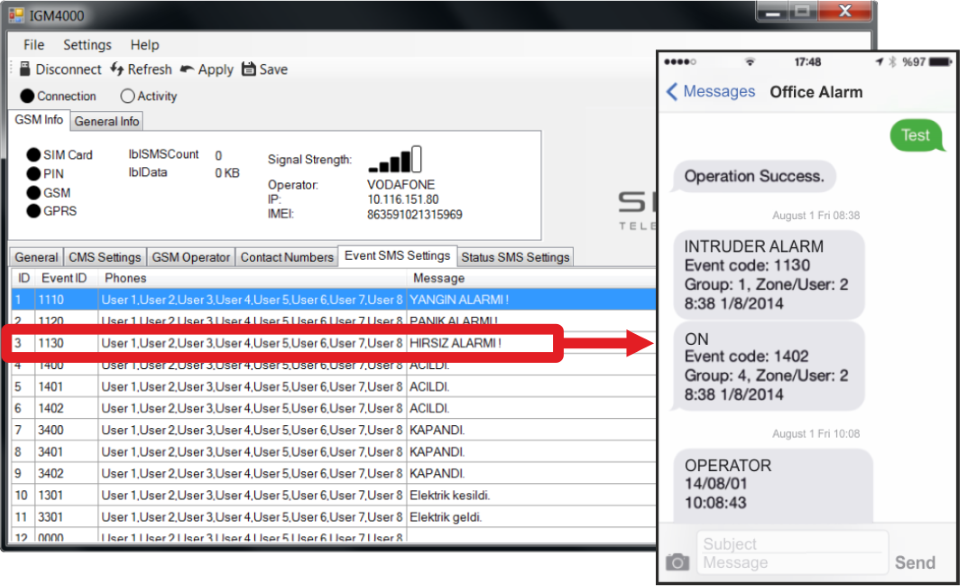

Image-1:
All settings can be done via computer with free con?guration software.
The ed messages sent from the panel can be forwarded via SMS to the speci?ed (up to 20) users.

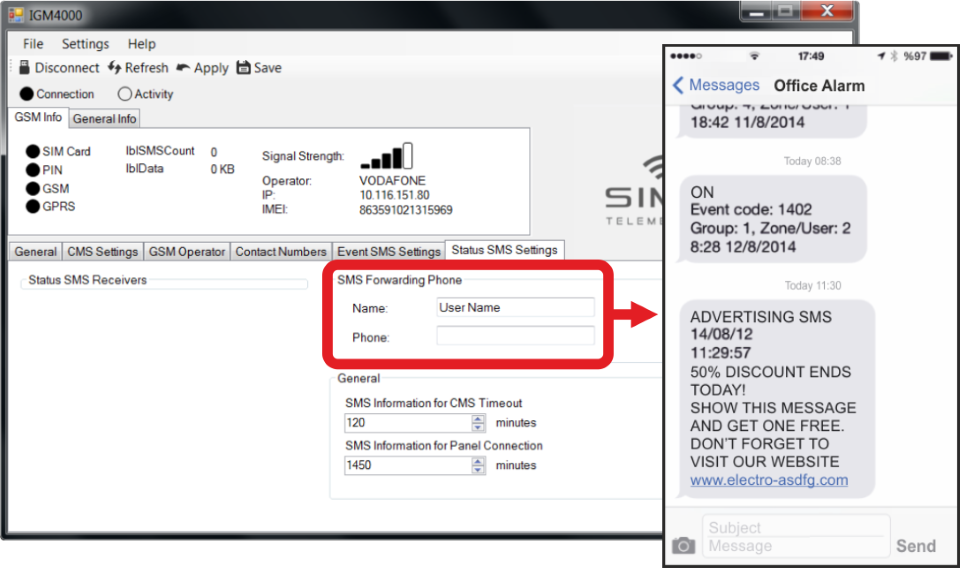

Image-2:
Incoming SMS messages can be forwarded.

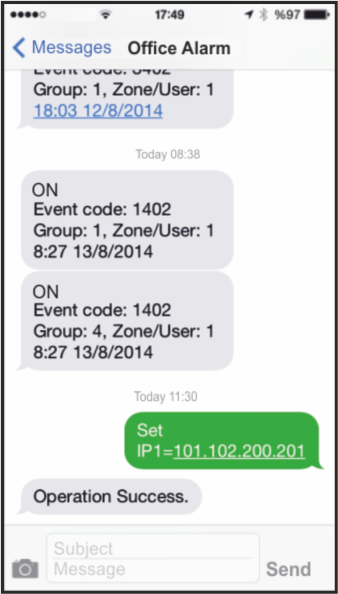

Image-3:
Basic settings can be done via SMS.
TECHNICAL SPECIFICATIONS:
